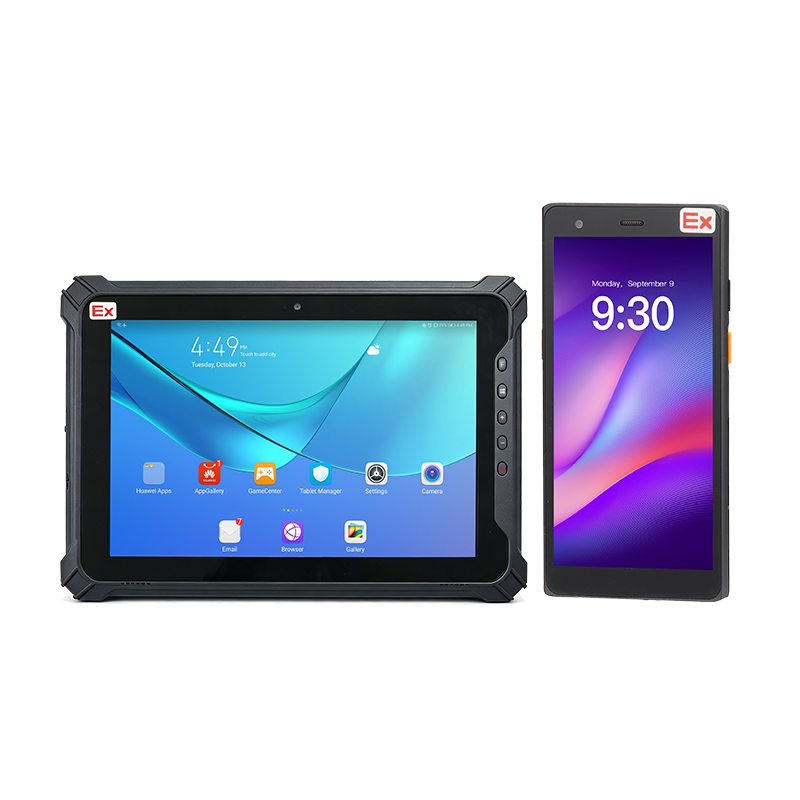

Explosion-Proof Mobile Terminal

The XYExPAD explosion-proof mobile terminal adopts intrinsically safe circuit design and features an anti-static treated body. Its explosion-proof, waterproof, and dustproof performance meets the requirements of the GB3836 standard. The terminal is equipped with a high-definition camera, 4G, Wi-Fi, GPS, NFC, and other functions, supporting barcode and QR code scanning. It can be integrated with various applications such as inspection and positioning systems and data collection systems. It is particularly suitable for Zone 1 and Zone 2 hazardous flammable and explosive environments, as well as combustible dust environments, such as petroleum, chemical, pharmaceutical, military, oil depots, natural gas pipelines, tank farms, and other hazardous locations with combustible and explosive gases.

Features

● Explosion-proof certification of the whole machine

● Support Android, Win10 system, fast running speed, stable performance, convenient operation

● Integrated 4G full Netcom, WiFi, Bluetooth, wireless and other communications

● Support mobile phone call, video call function, powerful communication functions

● High-energy polymer lithium-ion battery, using dual protection technology meeting intrinsic safety requirements

● Super battery endurance, excellent adaptation

● IP65 high protection level, industrial grade three-proof quality

● Support free selection of functional modules such as 1D/2D, NFC, fingerprint, etc. to meet the application needs of multiple industries

● Explosion-proof : Zone 2, Zone 21

Specifications

XYExPAD_6A
  • Model
    XYExPAD_6A
  • Screen size
    6" IPS
  • Screen type
    16:9
  • Resolution
    720*1280
  • Touch panel
    5-point capacitive screen, hardness above 7H, scratch-resistant
  • CPU
    MTK(5G-C)8core 2.2GHz
  • RAM
    4GB/LPDDR3
  • Memory
    64GB
  • Camera
    Front 500W; Rear 1300W
  • Internet connection
    WIFI/Bluetooth/4G
  • Positioning navigation
    GPS、Glonass
  • Fingerprint recognition
    Not supported
  • Barcode recognition
    One-dimensional & two-dimensional code scanning (optional)
  • Host interface
    Type-c SIM
  • Battery capacity
    3.7V/5000mAh
  • Adapter
    110~220VAC / 5VDC 2A
  • Operating system
    Andriod 12
  • Weight
    380g
  • Operating temperature
    -40°C~+60°C
  • Storage temperature
    -40°C~+70°C
  • Environment humidity
    10%-90% RH (no condensation)
  • Explosion-proof mark
    Ex ib llB T4 Gb
  • Protection level
    IP66
  • Appendix(Optional)
    charging base, handle, bracket, strap charging
XYEXPAD_6W
  • Model
    XYEXPAD_6W
  • Screen size
    6"IPS
  • Screen type
    16:9
  • Resolution
    720*1280
  • Touch panel
    5-point capacitive screen, hardness above 7H, scratch-resistant
  • CPU
    MSM8953 (8core) 2.0GHz
  • RAM
    4GB/LPDDR3
  • Memory
    64GB
  • Camera
    Front 200W rear 1300W
  • Internet connection
    WIFI/Bluetooth/4G
  • Positioning navigation
    GPS
  • Fingerprint recognition
    optional
  • Barcode recognition
    One-dimensional & two-dimensional code scanning (optional)
  • Host interface
    Type-c TF card(MAX 128G)
  • Battery capacity
    3.7V/5000mAh
  • Adapter
    110~220VAC / 5VDC 3A
  • Operating system
    Andriod 9.0
  • Weight
    1014g
  • Operating temperature
    -40°C~+60°C
  • Storage temperature
    -40°C~+70°C
  • Environment humidity
    10%-90% RH (no condensation)
  • Explosion-proof mark
    Ex ib llB T4 Gb
  • Protection level
    IP66
  • Appendix(Optional)
    charging base, handle, bracket, strap charging

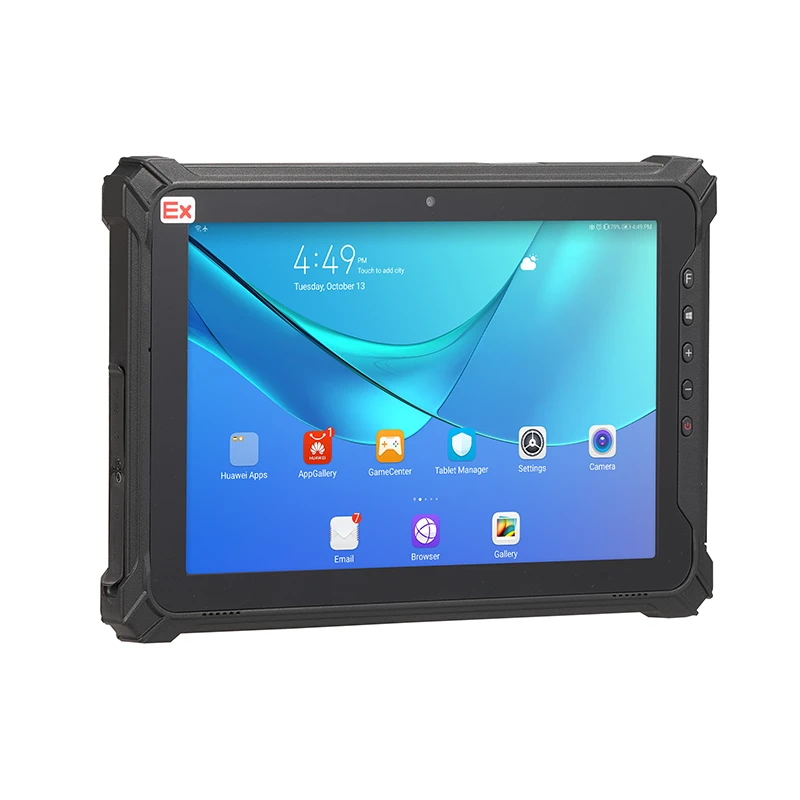

XYExPAD_10A
  • Model
    XYExPAD_10A
  • Screen size
    10.1"IPS
  • Screen type
    16:10
  • Resolution
    1200*1920
  • Touch panel
    10-point capacitive screen, hardness above 7H, scratch-resistant
  • CPU
    Intel trail Z8350 1.92GHz
  • RAM
    4GB/LPDDR3
  • Memory
    64/128GB
  • Camera
    Front 200W rear 500W
  • Internet connection
    WIFI/Bluetooth/4G
  • Positioning navigation
    GPS、Glonass
  • Fingerprint recognition
    optional
  • Barcode recognition
    One-dimensional & two-dimensional code scanning (optional)
  • Host interface
    Type-c SIM/HDMI/RJ45/USB2.0
  • Battery capacity
    3.7V/10000mAh
  • Adapter
    110~220VAC / 5VDC 3A
  • Operating system
    standard: Win10 IOT 32bit/64bit optional: Win 10 Pro 64bit
  • Weight
    1014g
  • Operating temperature
    -40°C~+60°C
  • Storage temperature
    -40°C~+70°C
  • Environment humidity
    10%-90% RH (no condensation)
  • Explosion-proof mark
    Ex ib llB T4 GB, Ex ic llC T4 Gc
  • Protection level
    IP65
  • Appendix(Optional)
    base, bracket, strap/strap, leather case, stylus
XYEXPAD_10W
  • Model
    XYEXPAD_10W
  • Screen size
    10.1"IPS
  • Screen type
    16:10
  • Resolution
    1200*1920
  • Touch panel
    10-point capacitive screen, hardness above 7H, scratch-resistant
  • CPU
    interl® core™ M3-6Y30/M3-7Y30
  • RAM
    4GB/LPDDR3
  • Memory
    128GB/256GB
  • Camera
    Front 200W rear 800W
  • Internet connection
    WIFI/Bluetooth/4G
  • Positioning navigation
    1IPS
  • Fingerprint recognition
    optional
  • Barcode recognition
    One-dimensional & two-dimensional code scanning (optional)
  • Host interface
    Type-c SIM/HDMI/RJ45/USB2.0
  • Battery capacity
    3.7V/10000mAh
  • Adapter
    110~220VAC / 5VDC 3A
  • Operating system
    standard: Win10 IOT 32bit/64bit optional: Win 10 Pro 64bit
  • Weight
    1014g
  • Operating temperature
    -40°C~+60°C
  • Storage temperature
    -40°C~+70°C
  • Environment humidity
    10%-90% RH (no condensation)
  • Explosion-proof mark
    Ex ib llB T4 Gb, Ex ic llC T4 Gc
  • Protection level
    IP65
  • Appendix(Optional)
    base, bracket, strap/strap, leather case, stylus
